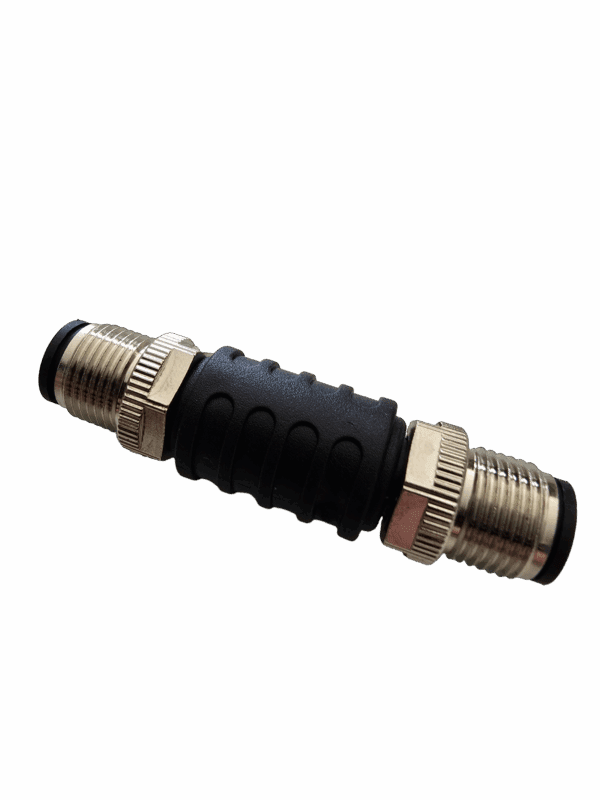

M12 5 Pin CAN Connector – Female to Female | Machine Control
Professional CAN Bus Extension Cable for Machine Guidance System Installations
Extend your Stonex SMC receiver connections with our robust M12 5 Pin CAN Connector – Female to Female. Perfect for creating custom cable lengths between SMC-ONE/SMC-TWO receivers and their male connector cables, providing flexible installation options for excavators, dozers, and construction equipment.
Key Features:
- Dual M12 5-pin female connectors – Extends existing male-to-male cables
- IP68 waterproof rating – Superior protection against dust and water ingress
- Heavy-duty construction – Built for harsh Australian mining and construction environments
- Shielded CAN cable – Prevents electromagnetic interference for reliable data transmission
- Professional grade – Meets Stonex SMC receiver specifications
Technical Specifications:
- Connector Type: M12 5-pin female to M12 5-pin female
- Cable Type: Shielded twisted pair CAN bus cable
- Wire Gauge: 18 AWG power, 24 AWG data
- Operating Voltage: +7V to +36VDC
- Operating Temperature: -40°C to +80°C
- Protection Rating: IP68
- Standard Lengths: 2m, 5m, 10m (custom lengths available)
Pin Configuration:
- PIN 1: CAN Shield
- PIN 2: V+ Power (+7V to +36VDC)
- PIN 3: GND (Ground)
- PIN 4: CAN_H (High)
- PIN 5: CAN_L (Low)
Perfect For Stonex SMC Systems:
- SMC-ONE Receiver – Extending CAN/power connections from M12 5-pin female port
- SMC-TWO Receiver – Power and data extension for flexible installations
- Sensor chain extensions – Connect multiple sensors with extended reach
- Custom cable lengths – Bridge gaps between standard cable lengths
- Field installations – Flexible routing around obstacles
Compatible Applications:
- Machine guidance installations – Excavators, dozers, scrapers, loaders
- Sensor chain connections – Extending tilt sensors and guidance components
- Power supply extensions – Reliable +7V to +36VDC transmission
- CAN bus network extensions – Data communication between control modules
- Field service applications – Temporary connections and system testing
- Mining equipment – Heavy-duty installations in harsh environments
Installation Benefits:
- Flexible cable management – Route cables around obstacles and tight spaces
- Plug-and-play extension – No splicing or custom wiring required
- Reliable power delivery – Maintains full voltage range for SMC receivers
- Clean data transmission – Shielded design prevents signal interference
- Weather-resistant – IP68 rating exceeds Stonex SMC receiver specifications
System Compatibility:
- Stonex SMC-ONE Receiver – All CAN/power connections
- Stonex SMC-TWO Receiver – Power and sensor chain extensions
- Hemisphere VR1000 Systems – Compatible with Red Edge installation methods
- MOBA Mobile Automation – CAN bus extensions for guidance systems
- Topcon Machine Control – Power and data transmission
Why Choose Red Edge Resources?
As Australia’s leading machine guidance technology provider with 100% customer retention, we supply only professional-grade components tested with Stonex SMC systems. Our M12 connectors meet the demanding requirements of major mining and construction projects nationwide.
Expert Installation & Training Available Our certified technicians provide professional installation services and are developing Red Edge installer certification programs for machine guidance systems across Australia.
