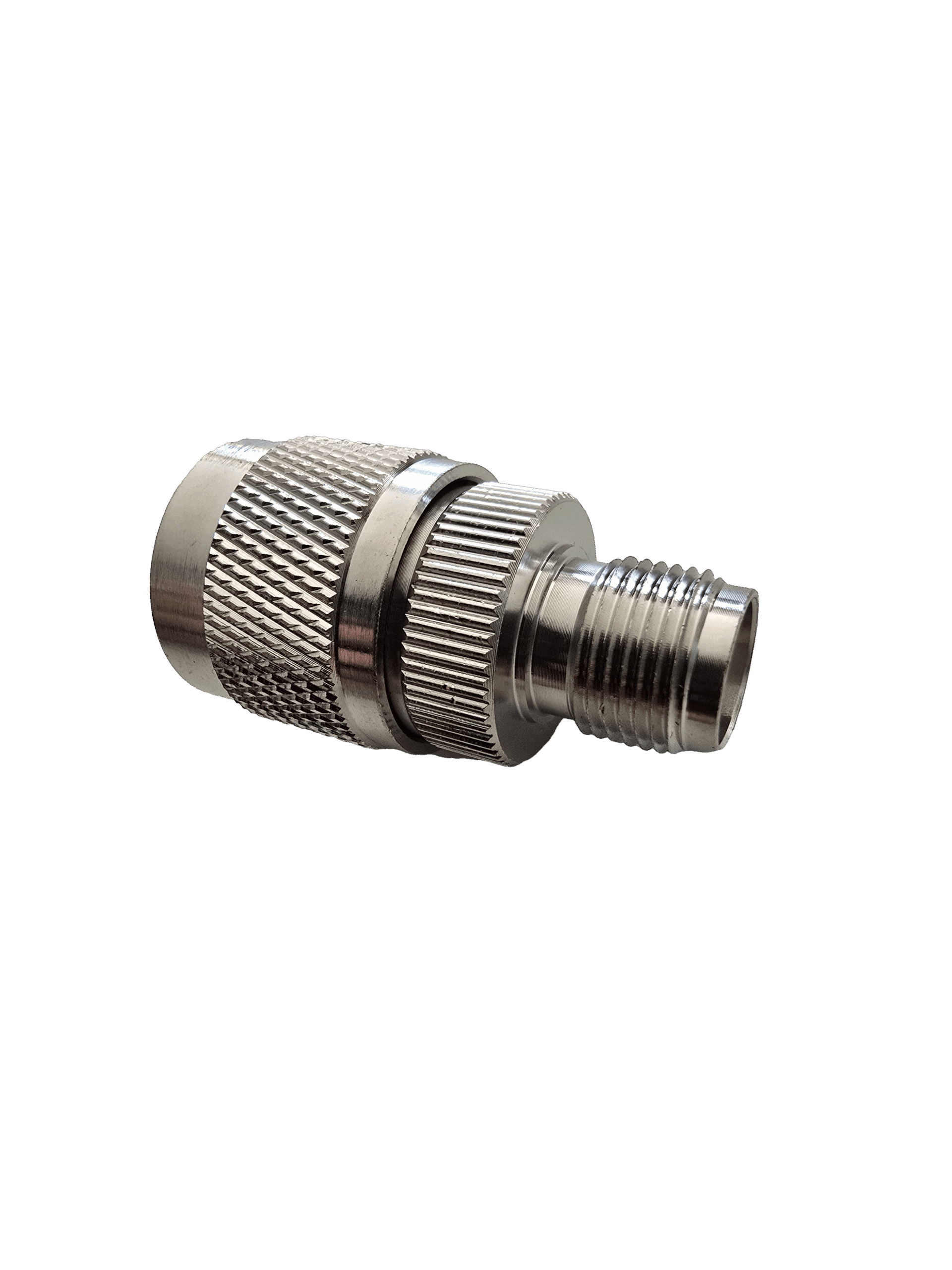

TNC Female to N Type Male Adaptor – Essential RF Connector for Machine Control GNSS Systems
Professional RF Adaptor for Converting TNC Antenna Ports to N-Type Connections
Convert your Stonex SMC receiver’s TNC female ports to N-Type male connections with our precision-engineered TNC Female to N Type Male Adaptor. Essential for connecting N-Type antennas to your GNSS, LTE, and UHF ports on both SMC-ONE and SMC-TWO receivers.
Key Features:
- Premium RF performance – Minimal insertion loss for optimal signal integrity
- Weather-sealed design – IP67 rated for harsh Australian conditions
- Precision engineering – Perfect fit for Stonex SMC receiver ports
- Gold-plated contacts – Superior conductivity and long-term reliability
- Professional grade – Built for demanding machine guidance applications
Technical Specifications:
- Connector Type: TNC Female to N Type Male
- Impedance: 50 Ohm
- Frequency Range: DC to 18 GHz
- VSWR: ≤1.15:1
- Operating Temperature: -40°C to +85°C
- Material: Brass body with gold-plated contacts
- Weather Rating: IP67 when properly mated
Perfect for Stonex SMC Systems:
- GNSS1 Port – Connect N-Type master antennas for position data
- GNSS2 Port – Attach N-Type slave antennas for heading information
- LTE Port – Adapt cellular antennas for data connectivity
- UHF Port – Connect radio antennas for communication systems
Compatible Applications:
- Stonex SMC-ONE Receiver – All four TNC female ports
- Stonex SMC-TWO Receiver – GNSS, LTE, and UHF connections
- Machine guidance antenna installations on excavators and dozers
- Survey and positioning equipment setups
- Construction equipment antenna modifications
- Field service and maintenance applications
Installation Benefits:
- Quick conversion – No permanent modifications required
- Versatile connectivity – Use existing N-Type antennas with SMC receivers
- Field-proven reliability – Tested across Australian mining and construction sites
- Cost-effective solution – Avoid expensive antenna replacements
Why Choose Red Edge Resources?
As Australia’s leading machine guidance technology provider with 100% customer retention, we supply only professional-grade RF components. Our TNC to N-Type adaptors are field-tested with Stonex SMC systems across major mining and construction projects.
Expert Technical Support Available Our certified technicians provide professional installation services and technical support for all Stonex SMC receiver systems across Australia.
